Sanitary cleaning series

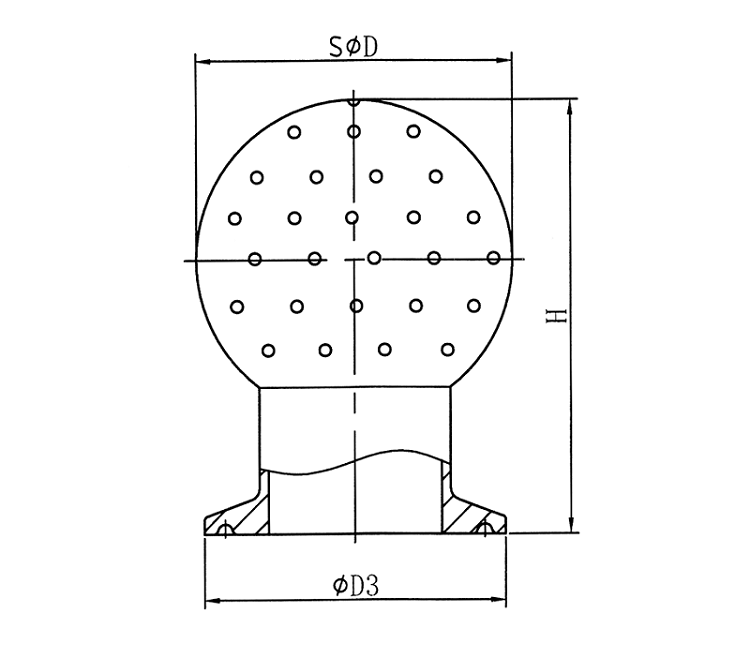

Fixed cleaning ball
| SIZE | D | D3 | H | kg | 304cost | 316cost |
| Ø12.7 | 38 | 50.5 | 58 | 0.10 | ||
| Ø25 | 53 | 50.5 | 68 | 0.12 | ||
| Ø32 | 53 | 50.5 | 68 | 0.12 | ||
| Ø38 | 63 | 50.5 | 77 | 0.17 | ||
| Ø51 | 76 | 64 | 86 | 0.27 | ||
| Ø51 | 91 | 64 | 105 | 0.32 | ||
| Ø63 | 91 | 77 | 105 | 0.32 |
| 304/316L | Wenzhou kuayue Technology Co., Ltd. | ||||||||||
| Fixed cleaning ball | |||||||||||
| mark | count | Change the file number | signature | date | |||||||
| design | pattern mark | Specification | unit | Proportion | |||||||
| proofread | mm | 1:1 | LZ-K01-009 | ||||||||
| audit | |||||||||||
| craftsmanship | Total 1 page | page 1 | |||||||||
